United Vision Security Systems, Co.

Hi-resolution at daytime ... and GenIII at night

 camera 25 kmcamera 25 km

At nighttime camera witch to GenIII (starlight)

There is a camera solution for every surveillance application. But there is no single camera for every surveillance application.

The challenge for security professionals is to design a surveillance system that employs the right type of cameras that meet project requirements while keeping the cost as low as possible

United Vision Security Systems, Co. introduces the Eagle Vision SkyCam series surveillance cameras equipped with color, B/W, IR Gen III intensifier, and Thermal Imager. Applications may include highway, tunnel, and parking lot surveillance the list is only limited by your imagination.

camera 25 km

1- DAY/Night  SkyCam Camera System

The SkyCam series cameras switch automatically from color, for daytime use, to ultra-sensitive B/W for nighttime surveillance. Minimum light intensity for the color mode is 0.3 lx , and 0.02lx  for the B/W mode. With a sensitivity enhancement of 32x, full color surveillance in light as low as 0.01 lx can be obtained. When combined with an infrared light source, these cameras, in their B/W mode, can be used in extremely low light conditions.

Color mode is suitable for daytime surveillance and where there is sufficient visible spectrum or artificial light at night to provide usable images.

 Monochrome mode is suitable for nighttime surveillance where there is a natural source of near-IR light, such as a full moon or where an artificial near-IR light source is available. Monochrome mode is also suitable for daytime surveillance where color is not a requirement.

Available Lenses for SkyCam are 200mm, 250mm, 300mm, 375mm, 500mm, 750mm, 1300mm with 2X extender we double zooming power of the cameras

*Recognition           Lens                  **Detection

< 1/2 km               200,250               up to 1 km

up to 1/2 km         300,375                up to 2 km

up to 1 km            500mm                  up to 3-4 km

up to 2 km            750 mm                 up to 6-7 km

up to 4 km           1300mm                > 10km

* based on target size 1mx2m

** based on target size  4mx4m



2- Eagle Vision Camera System

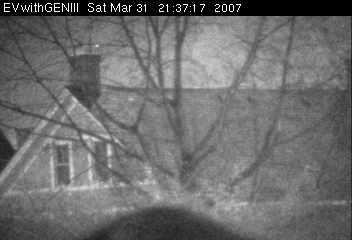

The Eagle Vision series cameras includes ev3000 utilized Gen III intensifier coupled with Black and White camera for very low light applications. This application implies very limited available light. The only light available may be from starlight or other light sources.  The ev3000 provide good contrast images as long as some reflected light is available to reflect off of objects, with a sensitivity  as low as 0.000006 lux .

ev3000 Dual utilized color camera with Gen III intensifier, the camera switch automatically from color, for daytime use, to IR Gen III  B/W for nighttime surveillance with a sensitivity  as low as 0.00001 lux can be obtained.

When combined with an infrared light source, these cameras ( ev3000 and ev3000D ), can be used in extremely low light conditions.

Lenses available for Eagle Vision are IR lenses 250mm, 375mm, 500mm, 750mm, 1300mm

also IR illuminators are available  with ranges up to  2km

For 0 Lux application

Eagle Vision TI-7000 un-cooled Thermal camera

Eagle Vision TI-4000 cooled Thermal camera

This sophisticated technology measures radiated heat from an object.

These cameras are used in applications where it is desirable to detect or measure infrared energy given off by objects.

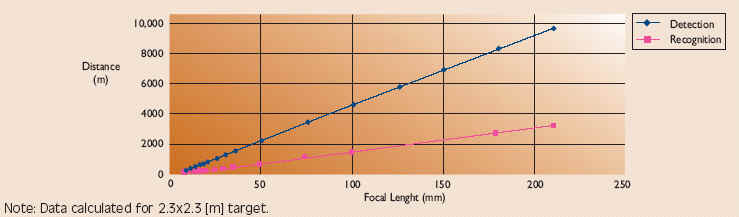

EV TI-7000 is designed for short range up to 3 km, low maintenance, 24 hrs surveillance,  working in 7-14 µm, and resolution 384x288/320x240

Lenses Available are 50mm, 110mm, 210mm

camera 25 km

                                                TI7000 with 50mm lens for range 1/2km

                                                TI7000 with 100mm lens for range 1km

                                                TI7000 with 210mm lens for range 2km



EV TI-4000 is designed for Mid and long range up to 20 km,  working in 3-5 µm, and high resolution 640x480

Camera performance



  Advantages Disadvantages
Color and Monochrome

SkyCam cameras

• Best for assessment/combination for resolution and color information

• Price

• Availability

• Low maintenance

• Large selection of lenses

• Best resolution

• Good to late night with moonlight

• Not as sensitive as Gen III at night time



Image Intensifier

Gen III

ev3000, ev3000D

• Low Light sensitivity for overcast starlit night

• Better resolution than thermal

• can be used for day and night applications

• Finite life span

• Lower resolution than monochrome and color cameras

• maintenance cost

Eagle Vision with EM Technology • Low Light sensitivity for overcast starlit night

• Better resolution than thermal & IR

• can be used for day and night applications



• Not as sensitive as Thermal at 0 lux
Thermal-uncooled

TI-7000

• Sensitive to heat emissions making it usable in no light conditions

• Can be used 24 hours a day



• Great for detection

• Great for temperature measurement

• Special lenses required with limited selection available

• Low resolution

• Not as good for assessment as color or monochrome

Thermal-cooled

TI-4000

• Sensitive to heat emissions making it usable in no light conditions

• Great for detection  at 0 lux

• Great for temperature measurement

• Special lenses required

• Not as good for assessment as color or monochrome

• High maintenance cost, every 7000 hrs or yearly

Long Range Day.Night Camera system with target tracking and laser rangefinder

Note : Eagle Vision with EM and Gen III use 1/2" sensor,

SkyCam can be 1/3" or 1/2"

for more information please call or email us

sales@ev3000.com

+1-413-592-8477
